Cruze Bathroom Cruze Shower Bath + Concealed 2 Outlet Shower Pack (1700 B Shaped With Screen + Panel)

Cruze Shower Bath + 2 Outlet Concealed Thermostatic Shower Package (1700mm B Shaped with Screen + Panel)

The Cruze shower bath with concealed thermostatic Shower package, features a stylish overhead, rainfall type round shower head and a handset too, for extra flexibility.

Modern shower baths which allow showering and bathing space in the bathroom. This 1700mm shower bath comes with a hinged curved bath screen and matching front panel manufactured from high quality gloss white acrylic.

All of our shower baths are available in left or right hand configuration, and are the new ideal solution for families looking to add a little luxury, whilst keeping an eye on space.

Please note, optional bath end panel (BBTEP) sold separately.

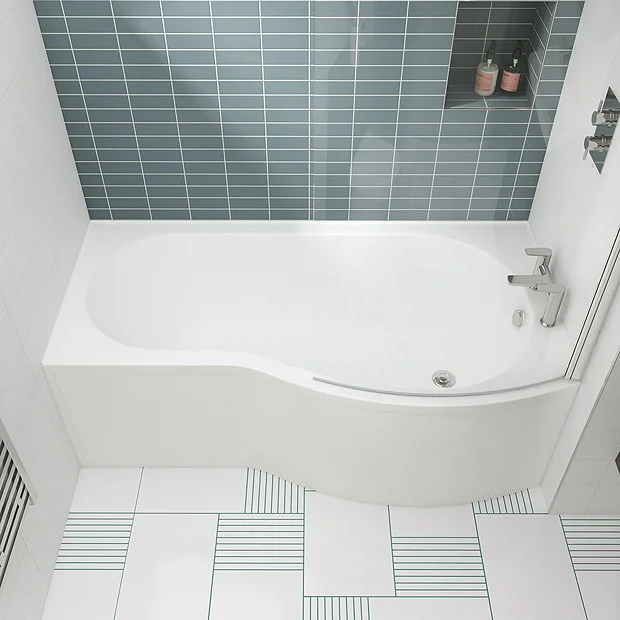

Bath Details

• Type: B-Shaped Shower Bath
• Dimensions: width 1700 x (depth at widest point) 900 / depth 736mm
• Bath Volume: 240 Litres
• Clean elegant contemporary design
• Choice of Right or Left hand bath tub
• High quality build
• Practical design solution
• White Gloss Acrylic
• No tap holes
• White Gloss Acrylic Side Panel Included
• Supplied with Leg Set
• Guarantee: 5 Year

Curved Bath Screen Details

• Height: 1435mm
• Width: 850-870mm
• Manufactured to the Highest Standards
• Polished chrome
• Reversible
• Hinged bath screen
• Metal caps
• 5mm toughened safety glass
• Guarantee: 5 Year

Bath Details

• Dimensions: 1700mm x 700mm (850mm at widest point)
• Bath Type: B Shaped
• Bath Volume: 210 Litres
• Colour/Finish: Gloss White
• Material: Acrylic
• Comes with metal bath legs
• Supplied with quality acrylic front panel
• Guarantee: 5 Year

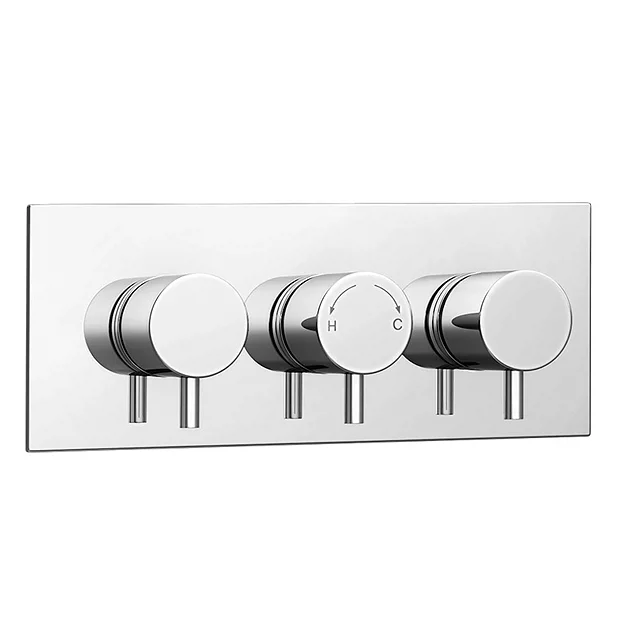

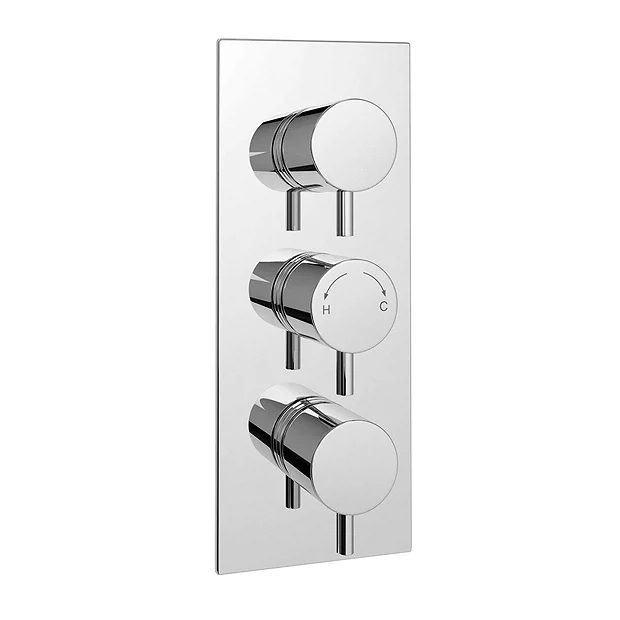

Concealed Shower Valve Details

• Width: 120mm
• Depth: 140mm
• Height: 265mm
• High Quality Design
• Finish: Polished Chrome
• Brass Internals
• Thermostatically controlled
• Valve Handles: Round with Lever Handles
• Rectangular Faceplate
• Style: Modern
• Operates two points separately or simultaneously
• Water Pressure: 0.5 bar min to 3 bar max
• Can be fitted vertically or horizontally
• Suitable for modern pressurised plumbing systems
• Hot water temperature 55 to 85 Degrees
• Should a pump be required we recommend a universal or negative head pump
• Shower valve will not work efficiently on a gravity fed tank system, unless a booster pump is installed.
• Guarantee: 5 Year (1 Year on serviceable parts for example: internal components such as check valves and cartridges)

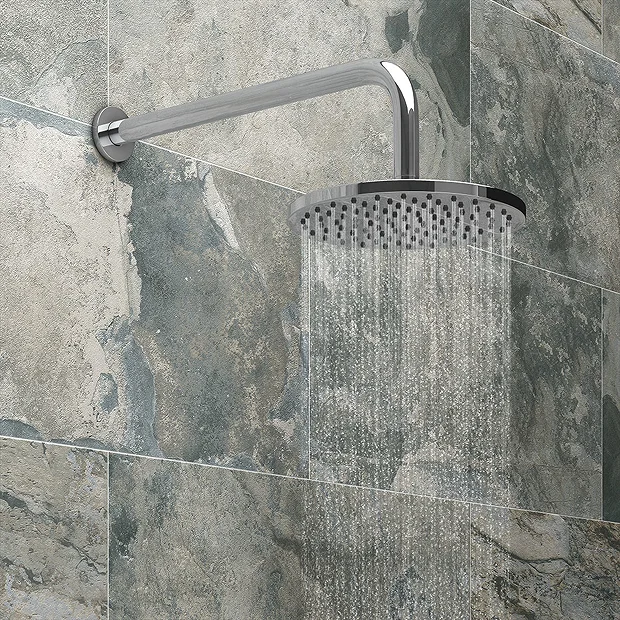

Overhead Shower Head + Arm Details

• Shower head dimensions: 200mm diameter
• Shower arm length: 345mm
• Style: Modern
• Colour/Finish: Chrome
• Type: Rainfall
• Water Pressure: 0.5 bar min to 3 bar max
• Supplied with swivel joint and wall mounted round arm.
• Please note: Shower head chrome plated plastic, not metal.
• Guarantee: 2 Year

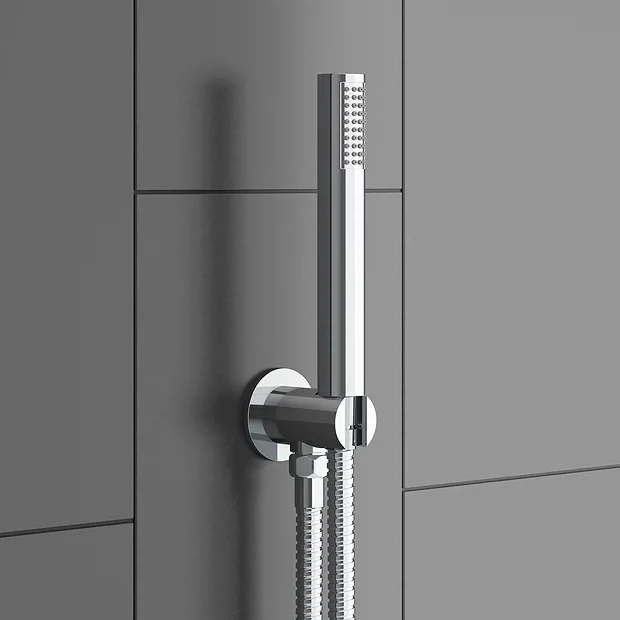

Shower Handset Details

• Depth: 66mm
• Height: 244mm
• Width: 50mm
• Manufactured To The Highest Standards
• Round Handset with Built in Outlet
• Suitable for all plumbing systems
• 1.5m Shower flex –  Brass / Chrome plated
• Outlet Elbow with Parking Bracket – Brass / Chrome plated
• Handset – ABS plastic / Chrome plated
• Rust resistant hose
• Highly polished finish
• Pencil handset holder
• Silicone nozzles mean that any lime scale deposits can simply be rubbed away
• Picture for illustrative purposes only
• Guarantee: 5 Year

End Panel, taps + waste not included

All measurements are approximate

Product images for illustration purposes only

Tap holes have to be drilled by customer

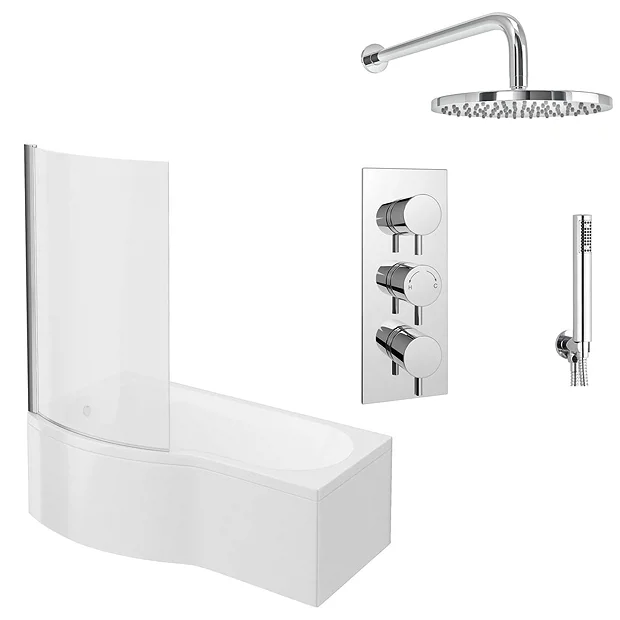

Comprises

(1) 1700mm B-Shaped Shower Bath with Leg Set
(1) B-Shaped Acrylic Bath Front Panel
(1) 5mm Curved Bath Screen
(1) Cruze Triple Round Concealed Thermostatic Shower Valve – Chrome
(1) 200mm Round Head + Round Shower Arm
(1) Round Outlet Elbow with Parking Bracket, Flex + Handset

Gravity Fed Systems:
If you live in an older property there’s a good chance you have a low pressure gravity-fed system. This shower valve requires a minimum pressure of 0.5 bar therefore we recommend installing a negative or universal pump (sold separately). Please note: Positive pumps will not work.
